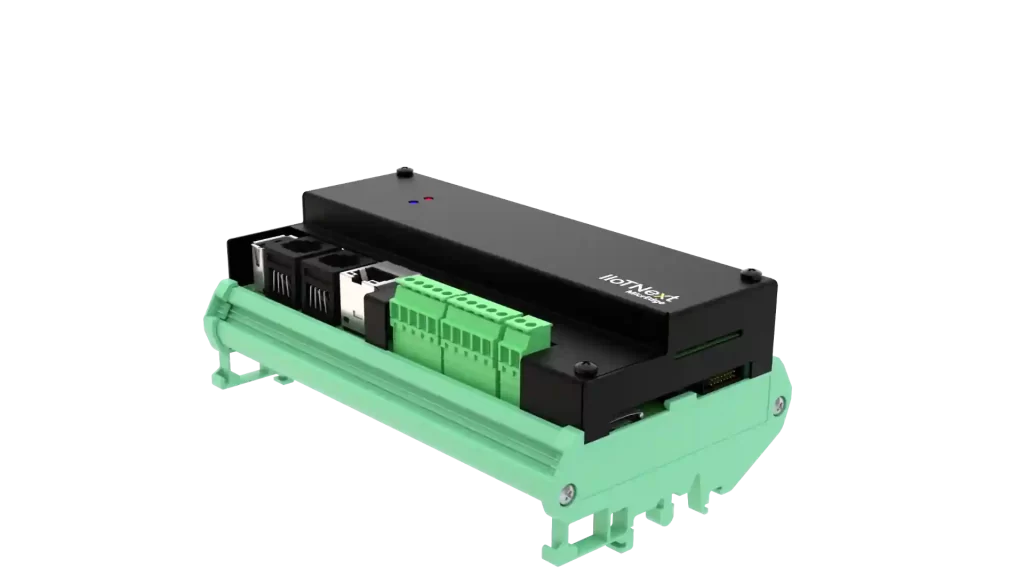

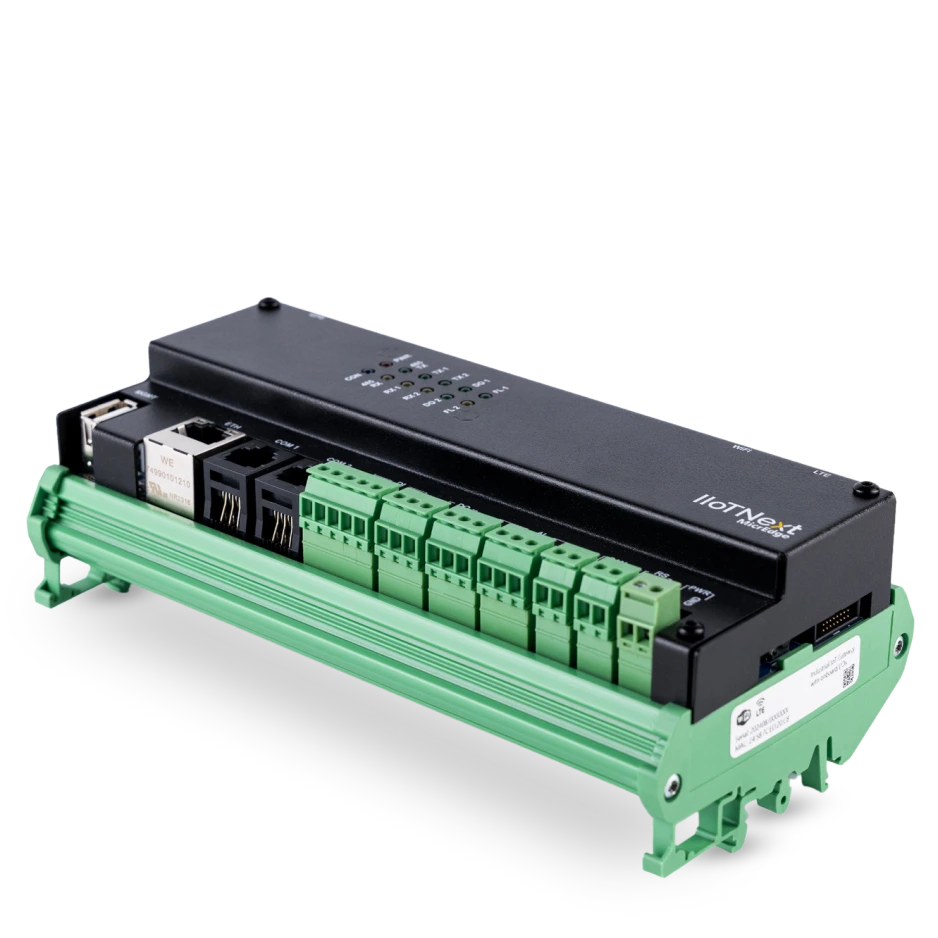

IIoTNext MicrEdge

A Family of low-cost, Industrial IoT Edge Processor

The IIoTNext MicrEdge is a powerful & affordable edge processor designed to streamline industrial IoT applications. Built for efficient data processing, the IIoTNext MicrEdge also serves as an industrial IoT gateway easily integrating with the IIoTNext platform, enabling real-time monitoring and visualization across varied industrial environments through secured and standard communication protocols.

The IIoTNext MicrEdge is a high-performing, low-cost industrial edge processor crafted to empower industrial IoT applications with advanced, centralized device management capabilities It provides efficient data processing, remote configuration, over-the-air (OTA) firmware updates, and robust remote diagnostics, all manageable through the IIoTNext platform.

The MicrEdge supports multiple protocols, allowing seamless integration across devices, and is equipped for extreme industrial conditions. It enables real-time analytics and data acquisition, making it an ideal choice for scalable, secure, and resilient IoT deployments.

The IIoTNext MicrEdge supports versatile connectivity options to ensure seamless integration with diverse industrial systems and setting. It includes Wi-Fi and Ethernet for robust internet access, onboard IO connectivity for sensor data acquisition, GSM/LTE options for cellular connectivity in remote locations, and RS485 and RS232 for industrial serial communication. It also supports CAN bus and Modbus protocols, enabling seamless data exchange with industrial equipment. With secure MQTT protocol for cloud communication, the MicrEdge facilitates flexible and reliable data transmission across devices.

What Makes IIoTNext MicrEdge Stand Out?

Features

Data Integration from PLCs, Controllers, Sensors via protocols like Modbus RTU/TCP, CANBus, DLMS, Custom ASCII
Control Digital Output from IIoTNext Platform over RPC
Centralized Device Management & Device Configuration
OTA Firmware upgrade
Cloud Communication via Secure MQTT
Inbuilt IOs
IO Expansion Modules
Plug & Play with IIoTNext Platform

Parameters	Specifications
General
Power Input	12/24Vdc
Power Rating	Max 5 Watt @ 24Vdc
Dimensions	72 x 180 mm
Inputs
I/O Connector	Screw Terminals
Digital Input/Pulse	4 x Digital Input, 12/24 V DC (100Hz Pulse Input )
Digital Output	2 x Digital Outputs (12/24V Digital Output (PNP), 500mA Max)
Analog Inputs	2 x Analog Inputs (4-20mA), 10 bits.
Analog Inputs (Universal)	2 x Analog Inputs (Configurable Currentor Voltage), 10bits
Board Specifications
Micro Controller	240 MHz, 16MB Flash, 512 kb SRAM
Temperature	-20˚C to +60 ˚C
Connectivity/Interfaces
Serial Interfaces	2 x RS-232 (RJ11), 1 x RS485 (Terminal Block)
CAN (Optional)	CAN (Terminal Block)
GSM Interace (Optional)	LTE, GSM: 850/900/1800/1900MHzAntenna Connector: SMA Female
WiFi	2.4 GHz WiFi IEEE 802.11 b/g/nAntenna Connector: SMA Female
Ethernet Interface (Optional)	RJ45 Connector
Device Communication Protocols	Modbus RTU on RS485, CAN, DLMS, Custom ASCII, Modbus TCP
Cloud Communication Protocol	MQTT
Programming Interface	USB Type A for Firmware download / Console
IO Extension Bus	IDC Connector for IIoTNext MicrEdge IO Modules
Others
Cyber Security	SSL/TLS Communication encryption
Mounting	72 mm DIN Rail

The IIoTNext MicrEdge belongs to a family of cost-effective, micro-industrial IoT gateways crafted to simplify and enhance operational efficiency. These gateways provide robust capabilities for remote management and configuration, allowing you to monitor and adjust your industrial systems seamlessly from any location. All these advanced features are integrated through the IIoTNext Platform (product backlink), a scalable, robust, and secure industrial IoT data management system designed to optimize and streamline your operations
